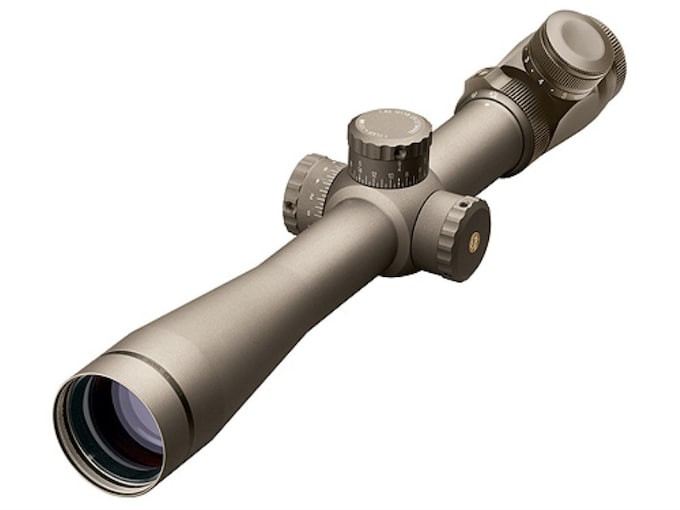

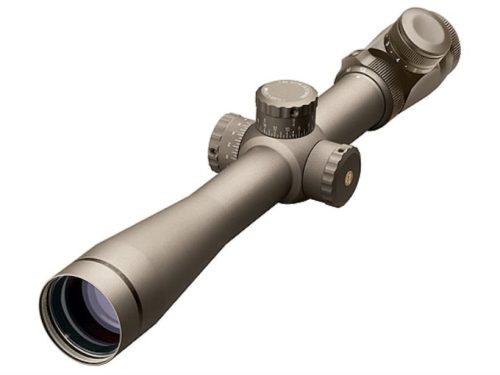

Leupold Mark 4 Long Range Tactical M2 Rifle Scope 30mm Tube 3.5-10x 40mm Illuminated TMR Reticle Dark Earth
The Leupold Mark 4 Long Range Tactical Rifle Scope was designed for military and law enforcement applications with increased elevation adjustment for long range shots. The scope features tall tactical turrets, the Multicoat 4 Lens System and is water, fog and shockproof. The Mark 4 Rifle Scope is covered by Leupold’s Full Lifetime Guarantee.
M2 and M3 dials are marked for bullet drop compensation in increments from 100 to 1,000 yards. The increments are calibrated only for certain calibers in specific bullet weights and muzzle velocities:
- .308 168gr. @ 2,650 fps
- .300 Win Mag 190gr. @ 2,900 fps
- .30-06 Springfield 180gr. @ 2,700 fps
- 5.56 x 45mm (.223 Rem.) 55gr. @ 3,200 fps
Specifications
Product Information
Finish | Dark Earth |
Waterproof | Yes |
Weight | 19.5 Ounce |
Battery | CR2032 |
Tube Diameter | 30mm |
Power Variability | Variable |
Minimum Power | 3.5 |
Maximum Power | 10 |
Adjustment Click Value | 1/4 MOA |
Adjustment Type | Click |
Exposed Turrets | Yes |
Finger Adjustable Turrets | Yes |
Turrets Resettable to Zero | Yes |
Zero Stop | No |
Turret Height | Medium |
Fast Focus Eye Piece | Yes |
Lens Coating | Fully Multi-Coated |
Warranty | Leupold Full Lifetime Guarantee |
Rings Included | No |
Sun Shade Included | No |
Lens Covers Included | Yes |

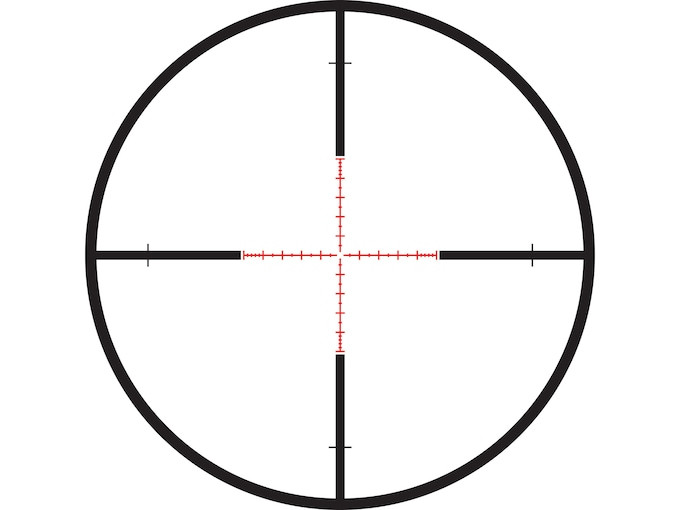

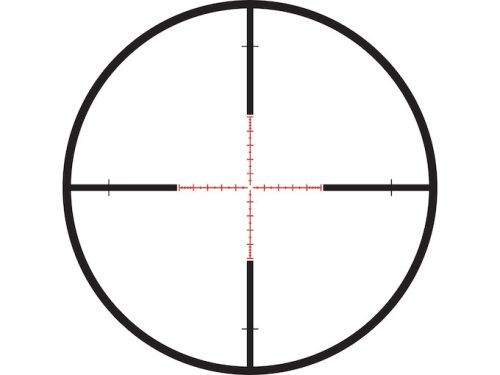

Reticle | TMR |
Reticle Construction | Glass Etched |
Illuminated Reticle | Yes |
Battery Type | CR2032 3V |
Holdover Reticle | Yes |
Reticle Focal Plane Location | 2nd |
Parallax Adjustment | Side Focus |
Fog Proof | Yes |
Shock Proof | Yes |

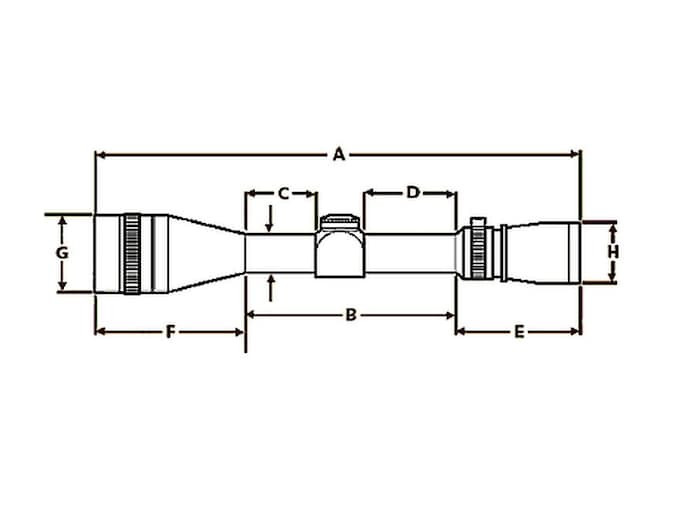

Overall Length (A) | 13.5 Inches |
Eyepiece Bell to Objective Bell Length (B) | 6.2 Inches |
Objective Bell to Turret Length (C) | 2.4 Inches |
Eyepiece Bell to Turret Length (D) | 2.4 Inches |
Eyepiece Length (E) | 3.2 Inches |
Objective Bell Length (F) | 4.3 Inches |
Objective Diameter (G) | 1.8 Inches |
Eyepiece Diameter (H) | 1.6 Inches |
Objective Lens Diameter | 40 Millimeter |
Eye Relief | 3.4 -4.7 Inches |
Exit Pupil Diameter | 4 Millimeter |
Field of View @ 100 Yards Minimum Power | 29.9 Feet |
Field of View @ 100 Yards Maximum Power | 11 Feet |
Maximum Windage Adjustment | 65 MOA |
Maximum Elevation Adjustment | 65 MOA |
